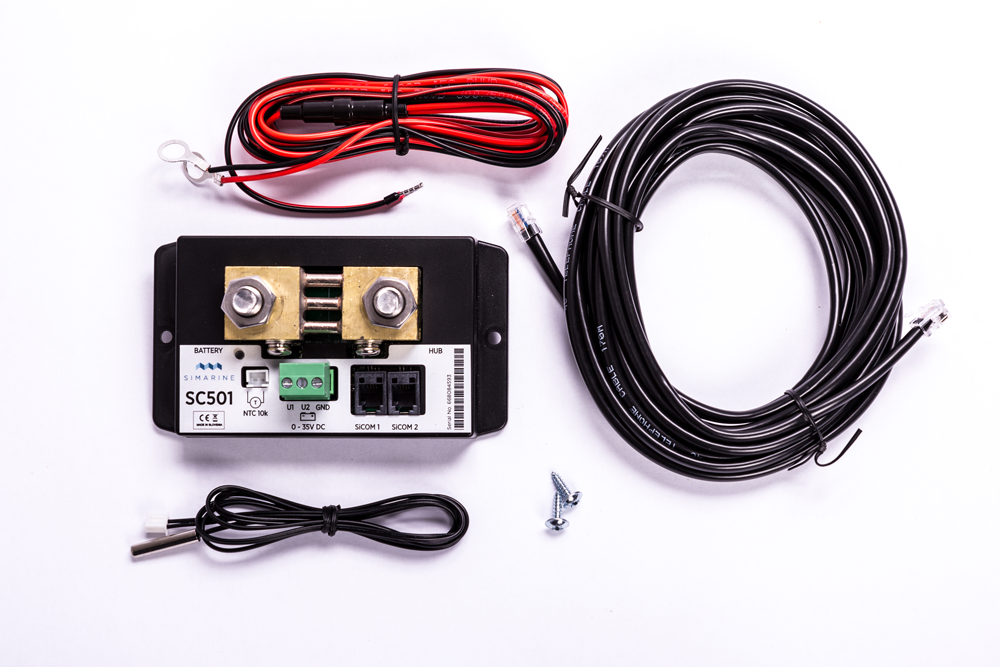

Simarine SC501 Shunt 500A
89,99 €*
% 119,00 €* (24.38% gespart)Versandkostenfrei
Lieferzeit ca. 3-6 Werktage
Produktinformationen "Simarine SC501 Shunt 500A"
Eingänge: 1 x Strom bis 500A, 2 Spannungen 0-75V, 1 x Temperatur über Widerstandssensor
Technische Daten
| Operation | |
| Voltage range | 6-35 V |
| Temperature range | -20 – +70 °C |
| Power consumption at 12V | |
| Operating | 0,8 mA |
| Current Measuring | |
| Range | 0,02 – 600 A |
| Accuracy | ± 0,6 % |
| Resolution | 0,02 A |
| Sampling rate | 100 ms |
| Maximal current | |
| Continuous | 500 A |
| Peak current ( <1min ) | 800 A |
| Voltage measuring | |
| Range | 0 – 35 V |
| Accuracy | ± 0,2 % |
| Resolution | 1 mV |
| Temperature sensor – NTC 5K | |
| Range | -15 – +80 °C |
| Accuracy | ( -10 – +60 °C ): 3 % |
| Installation and Dimensions | |
| Dimensions | 118x40x52 mm |
| Connection | M 10 bolts |
Simarine entwickelt innovative Batterie und Tank Monitoring Systeme. Mit dem PICOone und PICO Batteriemontor bietet der Hersteller kleine smarte und inuitive Lösungen
